00Case studies
Written case studies are shared on request, with the customer’s permission. These are the recurring situations behind them.
01Recurring applications
01
Direct steam injection into a tank through a drilled pipe: loud, and a sizeable share of the steam leaves the water without condensing. Replaced with a THERMOJECT venturi injector, the steam is drawn into the mixing chamber with the process fluid and condenses inside it, with the water body itself acting as the silencer.
THERMOJECT02
Cleaning a conventional Y-strainer means isolating the line and opening it up. MAINTENO is designed so the screen is cleared online by forced flushing and natural back flushing, operated from a blow down valve, with no instrumentation and nothing to dismantle.
MAINTENO Tigon03

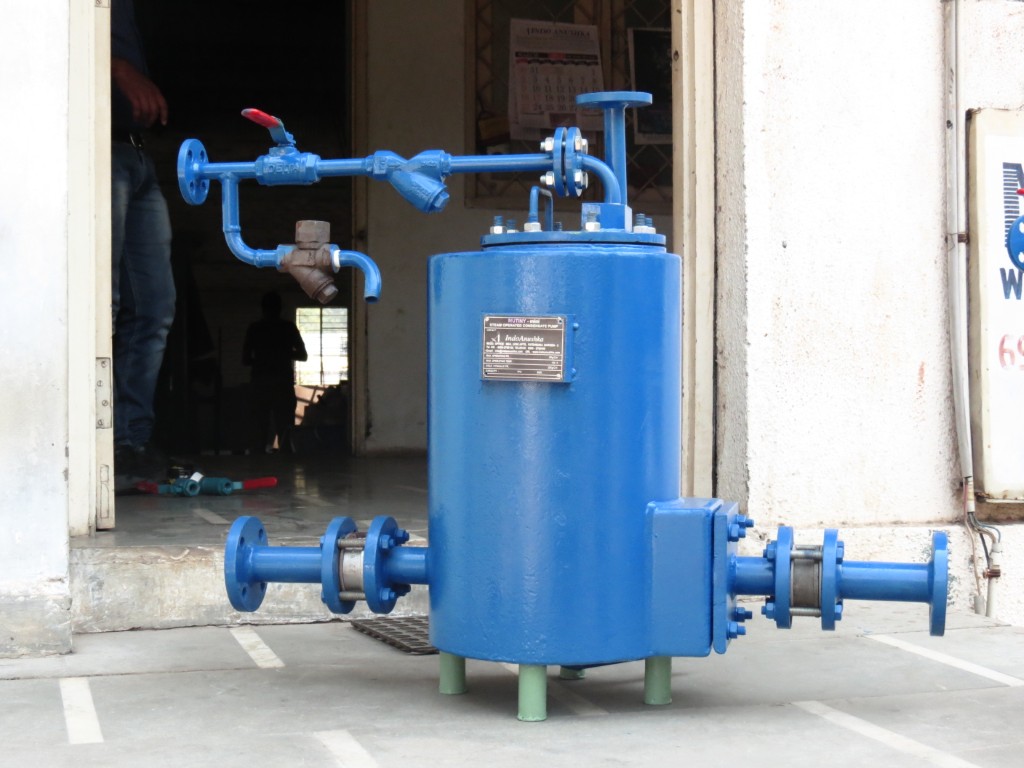

When control pressure falls below the back pressure, condensate stops draining, the exchanger floods and water hammer starts working on gaskets and plates. MUTINY PTC senses the condition and switches itself between trap mode and pump mode on motive steam of up to 7.0 kg/cm².
MUTINY PTC04

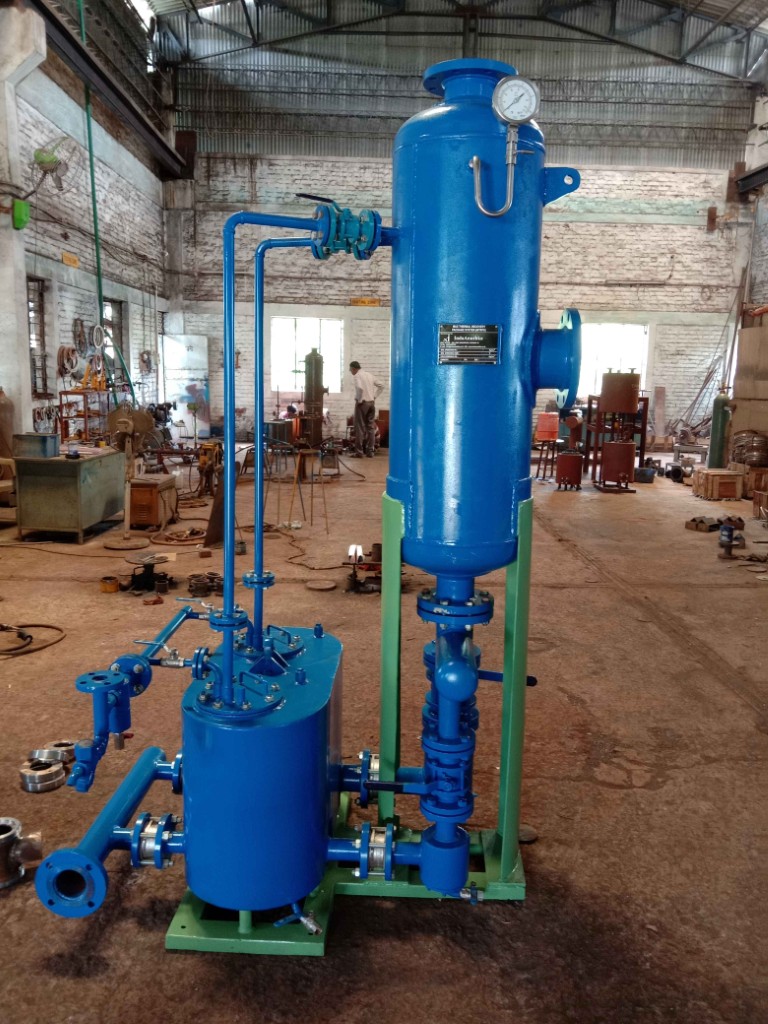

High pressure condensate flashes off at the receiver and the low pressure steam in it is lost. MAX-FLASH vessels separate that flash into usable low pressure steam; where the quantities are small and space is tight, MTRPS does the flashing and the pumping in one compact skid.
MAX-FLASH02Evidence from site

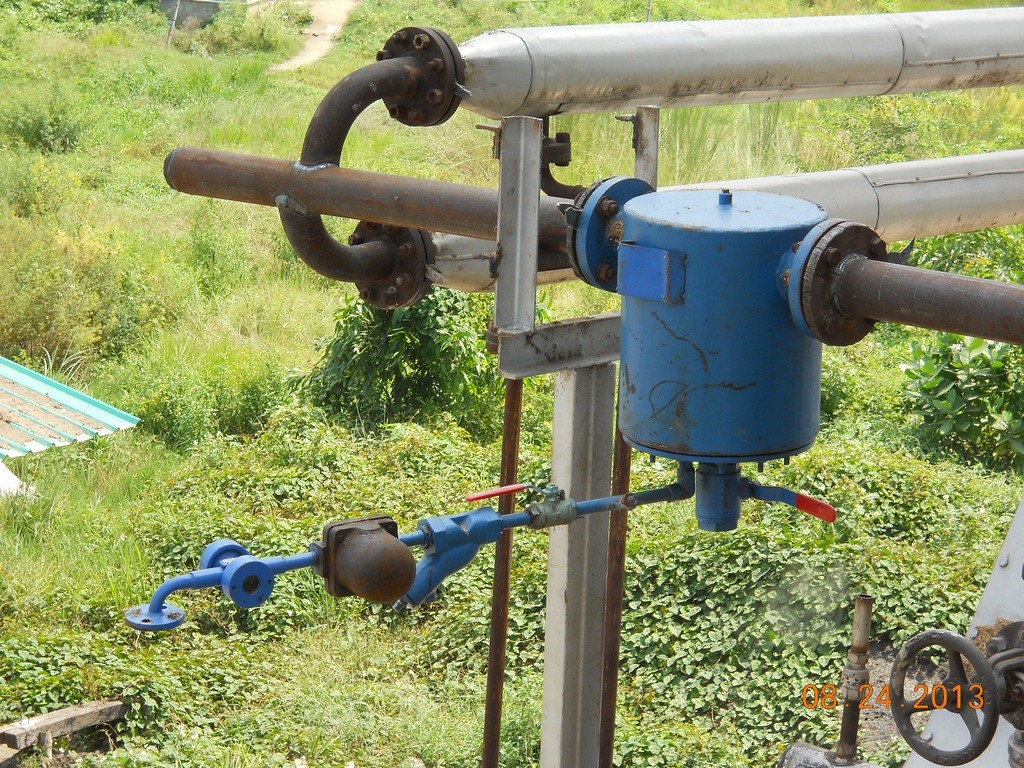

Photographs from our works and from customer sites.
Want the written case study for one of these?
Tell us which application matches your plant and we will send the relevant study, along with the sizing basis behind it.
Request a case study→Next step
Send a line drawing, a photograph or just the pressures and sizes. We answer with an application, not a price list.
