STEAM INJECTOR

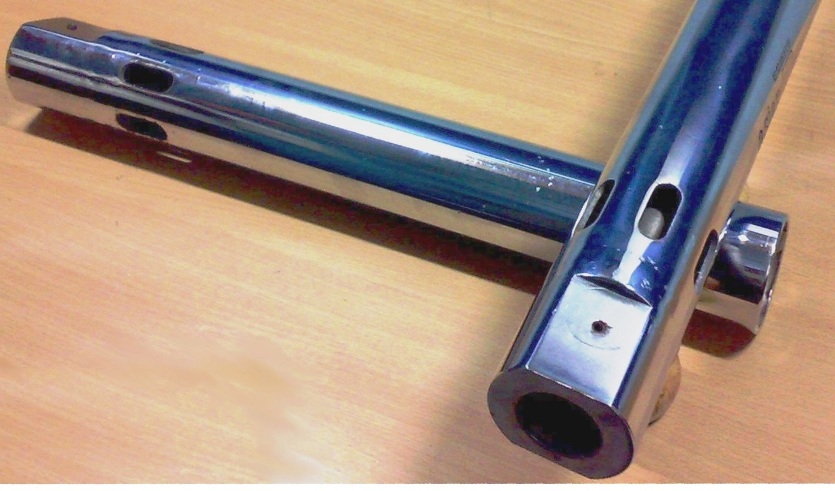

THERMOJECT
100% steam utilisation, near-silent — the sparge pipe replacement.
01Application
THERMOJECT is a venturi type nozzle provided inside a concentric cylindrical housing with elliptical slots in the low pressure zone. When steam flows out at high velocity through this convergent-divergent nozzle a differential pressure is created, and fresh cold process fluid is sucked in through the pre-designed slots and mixes with the steam inside the mixing chamber. What flows out of the injector is hot fluid, with no scope of steam escaping without condensing. As the injector remains dipped inside the water, the water body itself acts as a silencer, which results in negligible or no sound during mixing.
02What it does
- Reduces steam consumption through 100% utilisation of steam.
- Zero loss from uncondensed steam escaping the tank.
- The submerged body acts as its own silencer — negligible noise.
Sizing this for a line?
Send the pressure, the pipe size and what the equipment is doing. We will come back with the application.
